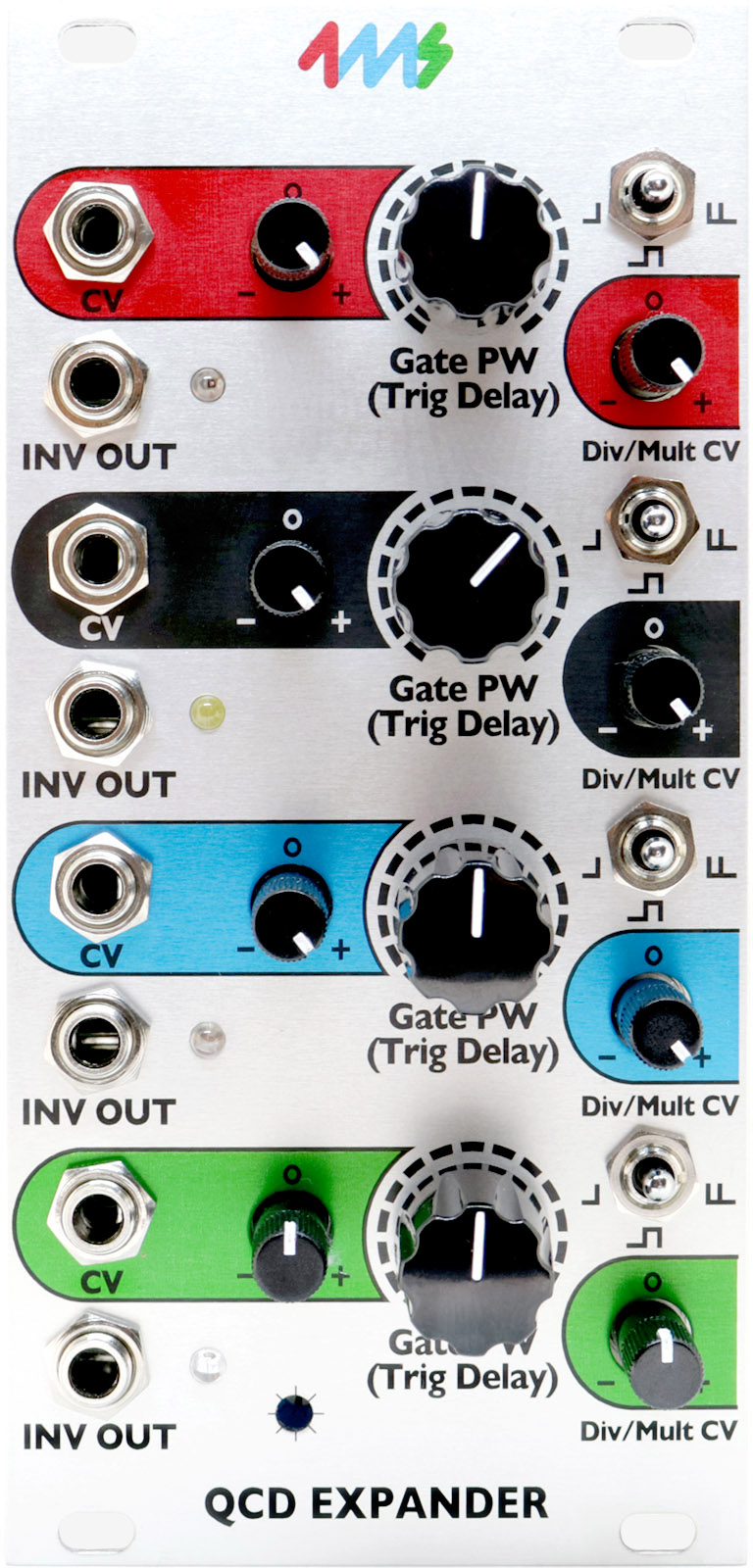

| QCD Expander [QCDEXP] |
The QCD Expander is an expansion module for the Quad Clock Distributor (QCD).
The QCD Expander adds a host of features, turning the QCD into a programmatic non-linear sequencer. Each channel gets a CV Trigger Delay (Pulse Width) jack and knob, an additional output jack with three selectable modes, and attenuverters for all CV input jacks. Self-patched evolving rhythms and swing/shuffle patterns are easily obtained, as well as complete control over standard rhythmic patterns.
Basic features:
- Connects to QCD module with a 16-conductor ribbon cable (included)
- More features are added to each QCD channel:
- Multi-mode output jack INV OUT mirrors the tempo of main QCD output
- Mode Switch for each INV OUT jack:
- Delayed Trigger Mode
- Inverted Gate Mode
- Shuffle Mode (delayed + original trigger)
-
PW/Delay knob controls trigger delay time on INV OUT jack (or pulse width in Inverted Gate Mode)
- Also controls Pulse Width of main QCD OUT jack
- CV input jack for external control
- Attenuverter allows for one channel to precisely modulate another channel's delay or pulse width
- Div/Mult CV attenuator knob
- Controls how much the signal on the main QCD's Div/Mult CV jack will modulate the tempo
- Useful for precisely modulating the speed of one channel with another
- Global LED brightness can be adjusted from the front panel

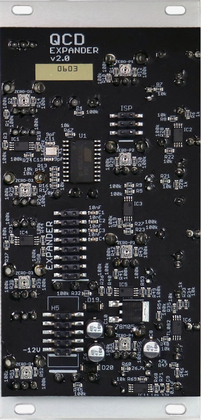

Electrical and Mechanical Specifications:
- Module size:
- 12 HP Eurorack format module

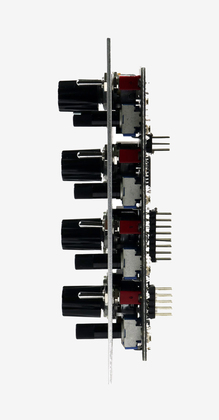

- 0.98" (25mm) deep
- Power consumption:
- +12V rail: 44mA max
- +5V rail: not used
- -12V rail: 30mA max
- 10-to-16 pin power cable
- 16-to-16 pin power cable (to connect to QCD)
- 4 M3 Knurlie screws
