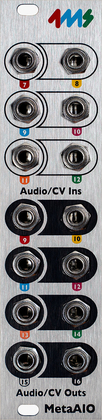

| MetaModule Audio Expander [MetaAIO] |
The MetaModule Audio Expander (MetaAIO) adds an additional 6 CV/Audio inputs and 8 CV/Audio outputs to your MetaModule patches, via a ribbon cable connected to the main MetaModule. The MetaAIO provides the same high-quality as the MetaModule's Audio/CV jacks (24-bit, 48kHz default, up to 96kHz).
Available starting February 28th, 2025!
$165.00
Electrical and Mechanical Specifications
- 6HP Eurorack format module
- 1.28" (32mm) maximum depth (including ribbon cable)
- 16-pin to 16-pin Eurorack power header
- Includes 2x5 ribbon cable for connecting to MetaModule
- Requires the MetaModule for operation
- Power consumption
- +12V: 140mA maximum
- -12V: 25mA maximum
- +5V: (not used)
- 8 CV/Audio outputs, 24-bit 48kHz, -10V to +10V, DC-coupled
- 6 CV/Audio inputs, 24-bit 48kHz, -10V to +10V, DC-coupled
- User memory (non-volatile): calibration values for each jack
